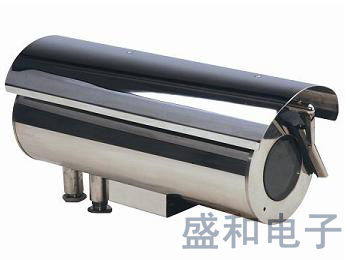

SHF800 Ex Fix Housing

Model:

SHF800

Name:

Ex Fix Housing

Ex Mark:

ExdCT6/DIP A20 TA,T6

IP Level:

IP68



Description:

SHF80 series Explosion-proof Camera Housing is designed for use in explosive atmosphere such as gas group ⅡC (typical gas vapours: hydrogen, acetylene, ethene, coke-oven gas and methyl ether etc.) as well as flammable dust. The housing is designed to prevent explosion by containing any heat, sparks or flames generated. This prevents potentially explosive atmosphere or materials outside the equipment ignited. SHF800 is equipped with wiper to keep the glass clean. It accommodates most camera / lens combinations with sunshield and wiper matched. It transmits real-time video and on-the-spot scanning, with functions of real-time video storage and remote on-line transmission etc..




Technical Data:

Model

SHF800

Certification Parameter

Manufacturers Standard

GB3836-2000, GB12476.1-2000

Configuration Mode

front and rear caps with threaded flameproof joints

Explosion-proof Mark

ExdⅡCT6 / DIP A20 TA,T6

IP

IP68

Operating Temperature

-25-60℃note

Cable Entries

2×G1/2”Explosion-proof cable entries, Dia. of inner hole Φ12

Mechanical Features

Material

Carbon steel / Stainless steel (304/316/316L)

Wiper

Inside

Sight Glass Dimensions

Φ75 mm

Outside Dimensions

405×165×215

Inside Dimensions

Φ125×330 mm

Weight

10 Kg

Built-in Decoder

Controlling Device

AVR singlechip with RSIC kernel

Controlling Device

Switch Signal

Voltage

12V DC

Current

300 A

Voltage

 12VDC/24VDC/220VAC

Current

1 A/0.5A/ 0.1 A

Others

Sunshield

Fitted as standard

Optional

power supply module, Inner heating

Cable requirement

Power supply: 2X1.0 mm224V DC/ 2×0.75 mm2  (220V AC ) Communication: Shield 2X0.75 mm2 Video: 75Ω
