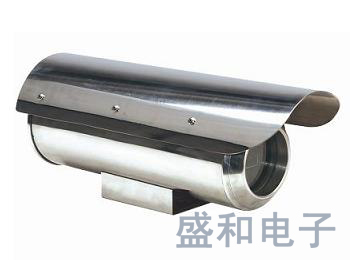

SHF721 Stainless Steel Camera Housing


Model:     SHF721

Name:     Stainless Steel Camera Housing

IP Level:  IP68


Description:


SHF72 series Corrosion-proof Camera Housing is designed to withstand extremely adverse environment filled with a variety of acid, alkali and dust etc.. It accommodates most camera / lens combinations with optional sunshield, wiper and heater etc., after all of which are assembled, it could conduct functions of real-time video transmission and on-the-spot scanning, real-time video storage and remote on-line transmission etc..


Model

SHF720

SHF721





Basic Parameter

Manufacturers Standard

Enterprise Standard

Configuration Mode

Front and rear caps with threaded flameproof joints and silastic gasket ring

Explosion-proof mode

IP68

Operating environment

Places with corrosive air or substance such as acid and alkali

Operating temperature

-25°60℃ note1

Relative Humidity

≤95% +25℃

Cable entries

2 corrosion-proof cable entries, inner hole dia.ф10









Mechanical

Features

Construction

304316L stainless steel

Wiper

Inside

No

Wiper’s rotate speed

1 r/s

No

Electric motor

Permanent-magnet D.C. motor decelerates with gear

No

Transmission structure

Lubricated all-wheel inner parts

No

Sight glass dimensions

ф75 mm

Dimensions (L×W×H)

405×150×215 mm

320×134×151 mm

Inside dimensions

ф125×330 mm

ф100×280 mm

Weight

5 kg

2 kg



Built-in Controller

Controlling Device

AVR singlechip with RSIC kernel

No

Controlling Interface

Switch signal

No

Voltage

12 V DC

No

Current

300 A

No

Power Supply

Voltage

12V DC/24V DC/220V AC

Current

1A /0.5A/0.1A





Others

Sunshield

Fitted as standard

Optional

Built-in Power supply module

Optional

Inner heating

Cable requirement

Power supply: 2X1.0 mm224V DC/ 2×0.75 mm2  (220V AC ) Communication: Shield 2X0.75 mm2 Video: 75Ω
