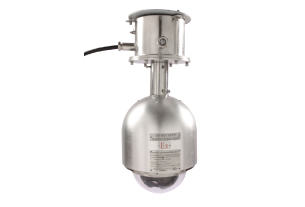

SHEX 910

FEATURES
Dual-cast stainless steel design, used in either indoor or outdoor locations
Omni-directional Pan/Tilt has stable operation, without dithering and noises
eIntegrated multi protocol decoder controller
e Dome enclosure adopts GE aerospace materials to achieve 99% above light transmittance; Fit forall kinds of atmosphere: More than 10 years' design lifetime
Optional Network communication / signal transmission by cptical cableEmbed in TVS surge and lightning protector to prevent pulse signal attack
eOptional quickfit interface, with hot plug function
*Electric conduction link with ALPS structure to attain 10,000,000 rpm service lifeCompatible with all the controlling devices such as DVR, matrix etc.
e Running track memory function: can memory a certain pTZ operate process within 40s, no data lostduring power shortage
Auto-reposition, Soft-address edit, Long focus speed limited, Alarm function

Model	SHEX910		SHEX910A
Certification Parameter
Manufacturers Standard	EN60079-0:2018, EN60079-1:2014，EN60079-28:2015,  EN60079-31:2014,
Material	0Cr18Ni9(304) / 00Cr17Ni14Mo20(316L)
Configuration Mode	Integrated Dome Shape
Explosion-proof Mark	II2 G Ex db IIC  T6 Gb， II2 D Ex tb IIIC T80℃ Db
IP	IP68(2m/2h)
Operating Temperature	-40℃～60℃
Humidity	≤95%(+25℃)
Cable Entries	1×G3/4”Explosion-proof cable entry , Dia. of inner hole Φ15
Mechanical Features
Back Box Material	0Cr18Ni9(304) / 00Cr17Ni14Mo20(316L)
Electric Motor	MAE Accurate step motor, Preset resolution 0.02°
Transmission Structure	Electric conduction link, High strength aluminum alloy (LY12) gear with synchronous belt
Optical Transceiver and Receiver	YES		NO
Weight	32 Kg		22.5 Kg
Control Mode
Communication	Multi-protocol (PELCO-D, PELCO-P etc. ), RS485
Address Range	1-1023 (Soft address edit)
Bit Rate	2400 / 4800 / 9600 / 19200 bps
OSD	On / Off, English Menu, Chinese characters overlapping
Pan/Tilt
Preset Positions	128
Tour (SEQ)	8 Tours (Each tour with 16 / 8 presets, preset speed and dwell time can be set)
Auto Pan	3 P2P tours ( between 2 presets)
Pan / Tilt Range	Pan: 360°Continuously; Tilt: -2°~ 90°(180°Auto Flips)
Pan / Tilt Speed	Pan: 0.2°~ 240°/s (continuous control); Tilt: 120°/s; Auto Pan: 25°/s
Alarm	8 Alarm inputs、2 Auxiliary outs
Camera
Optional Camera	FCB-EX1010/EX1010P, FCB-EX990D/EX990DP, FCB-EX490D/EX490DP,
	FCB-EX1000/EX1000P, FCB-EX980/EX980P, FCB-EX480C / EX480CP,
	VK-S858EN / N ，VK-S654E, VK-S214R/VK-S214ER, VK-S634，
	CNB-VP200L|CNB-VP250CNB-VP200L|CNB-VP250 SCC-C4253P, SCC-C4255P etc.
Power Supply
Voltage	AC230V, 50/60Hz ;   AC220V, 50/60Hz; AC110V, 50/60Hz;  AC24V, 50/60Hz
Current	500mA
Standard	IEEE802.3、IEEE802.3U、IEEE802.3X
Mode	Support 10BASE-T or 100BASE-TX Full / Half duplex
Port	RJ45
Optical Fiber Mode	Single Mode
Working Mode	1310nm or 1550nm
Optical Fiber Port	SC
Optical Fiber Qty	1 core
Power supply	DC5V
